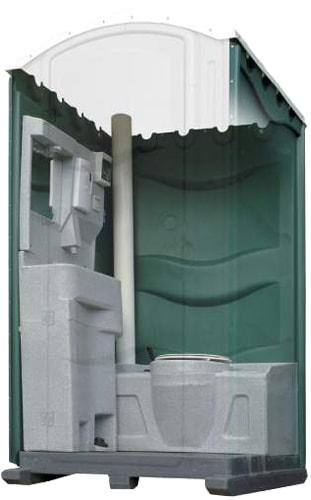

Meridian Integrated Toilet & Wash Station

Currently Unavailable

Details/Features

Recirculating flush style tank operated by means of a hand pump.
Large Health & Safety compliant sink, designed for full forearm immersion and foot operated for optimum efficiency.
Instantaneous 3kW-water heater placed above the wash hand basin.
24-Volt submersible pumped water supply.
12 Volt courtesy light and acrylic mirror.
Full RCD/MCB protection conforming to the latest IEE regulations.

Technical Details

• Base : MD Polyethylene
• Roof : HD Polyethylene
• Door & Frame : HD Polyethylene
• Side Panels : HD Polyethylene

Dimensions:

• Total Weight : 110 Kg (240 lbs approx.)
• Total Width : 1166 mm
• Total Depth : 1215 mm
• Total Height : 2316 mm
• Door Height : 1975 mm
• Door Width : 639 mm
• Waste Tank Capacity : 225 litres
• Large wash basin capacity : 65 litres

All Meridian units that require electrical connections are certified with a full Electrical Test Certificate conforming to BS 7671, I.E.E. Wiring Regulations Act (amended) 1997.

Available Options:

Outer Colour:

• Blue
• Aqua
• Dark Green
• Light Green
• Yellow
• Orange
• Red
• Burgundy
• Goose Grey
• Cerise/Pink
