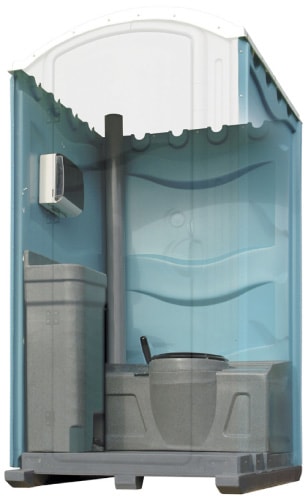

Meridian Standard Re-Circ Unit

Details/Features

Standard drop tank chemical toilet for both existing and emerging world markets.
Wash hand basin, foot operated for optimum efficiency.
Internal fittings available in both marble grey and marble white.
A urinal may be fitted to the wall with direct drain to the toilet in place of the wash hand basin.

Technical Details

• Base : MD Polyethylene
• Roof : HD Polyethylene
• Door & Frame : HD Polyethylene
• Side Panels : HD Polyethylene

Dimensions:

• Total Weight : 80 Kg (174 lbs) Dry weight (standard toilet only)
• Total Width : 1166 mm
• Total Depth : 1215 mm
• Total Height : 2316 mm
• Door Height : 1975 mm
• Door Width : 639 mm
• Waste Tank Capacity : 225 litres
• Standard wash basin capacity : 45 litres

All Meridian units that require electrical connections are certified with a full Electrical Test Certificate conforming to BS 7671, I.E.E. Wiring Regulations Act (amended) 1997.

Available Options:

Outer Colour:

• Blue
• Aqua
• Light Green
• Orange
• Red
• Burgundy
• Goose Grey
• Cerise/Pink
