Vacuum Tanks & Associated Equipment

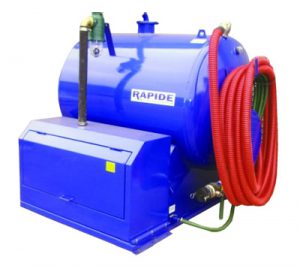

Shorelink Steel Vacuum Tank Units

A self contained pumper unit with a capacity of 300 gallons of waste and 100 gallons of fresh water. The freshwater tank is treated with an Aqua Seal type paint. The pumper comes complete with an 8 HP air-cooled petrol engine with both electric start and recoil start facilities, a 12-volt battery and a 2600 vacuum pressure pump.

The pumper unit comes complete with 15 metres of 50mm Gay Flo (Tiger Tail) hose complete with a 50mm UPVC ball valve and probe fitted to waste tank.

The water tank is fitted with 15 metres of 25mm hose complete with 2 brass ball valves and low-pressure discharge.

The pumper unit is fitted with a 75mm discharge valve, 3 metres of waste discharge hose, 2 sight glasses, 1 pressure relief valve, 1 cut off trap when full and 1 vapour trap to protect vacuum pump.

The engine and vacuum pump is covered by a removable steel cabinet.

RSPU 300/100

  • Weight empty 680kg
  • Length 1900mm
  • Waste capacity 300-gallon
  • Width 1650mm
  • Weight full 2100kgs
  • Height 1740mm

RSPU 450/150

  • Weight empty 760kg
  • Length 1975mm
  • Waste capacity 460-gallon
  • Width 1800mm
  • Weight full 2900kgs
  • Height 1980mm

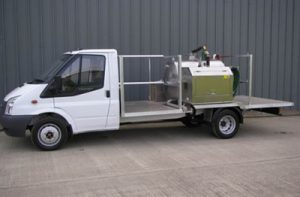

Shorelink Service Unit

This dedicated pumper unit is fitted to the customers own chassis cab. A popular capacity of 180-gallon waste – 100-gallon fresh water and the facility for carrying 4 toilets, when the waste tank is full and water tank is empty. The framing and decking is of an aluminium construction, the pumper unit is also fitted with an extra storage box.

The capacities are determined by the chassis cab supplied to us i.e. 220-gallon waste – 100-gallon fresh water, but to carry only 2 toilets. This configeration is best suitable to a short wheel base vehicle.

The pumper comes complete with an 8 HP air-cooled petrol engine with both electric start and recoil start facilities, a 12-volt battery and a 2600 vacuum pressure pump.

The pumper unit comes complete with 15 metres of 50mm Gay Flo (Tiger Tail) hose complete with a 50mm UPVC ball valve and probe fitted to waste tank.

The water tank is treated in an aqua seal paint and can be retreated over time.

The water tank is fitted with 15 metres of 25mm hose complete with 2 brass ball valves and low-pressure discharge. The pumper unit is fitted with a 75mm discharge valve, 3 metres of waste discharge hose, 2 sight glasses, 1 pressure relief valve, 1 cut off trap when full and 1 vapour trap to protect vacuum pump. The engine and vacuum pump is covered by a removable steel cabinet.
